SMART-POL Polarizing Microscope

Application:

Smart-POL polarizing microscope is widely used in the field of geology,petroleum,coal chemical industry,medical treatment,and teaching and so on.

A high performance polarizing microscope with complete functions and good quality.

Non-stress transmitting infinity plan objective with different magnifications,supply 40X-100X-200X-400X magnifications.

0-90º adjustable analyzer unit,which can be moved out of the optical path for single polarizing obseve.

The Bertrand lend can be moved out of the optical path.

Under condenser polarizing unit can be moved out of the optical path.

Display:

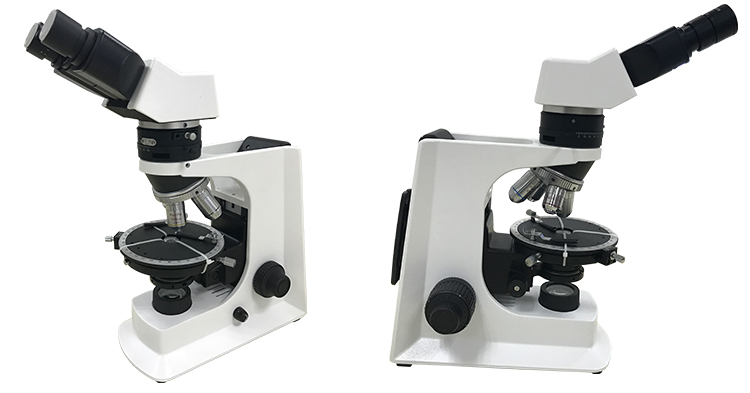

01. Smart-POL polarizing microscope picture

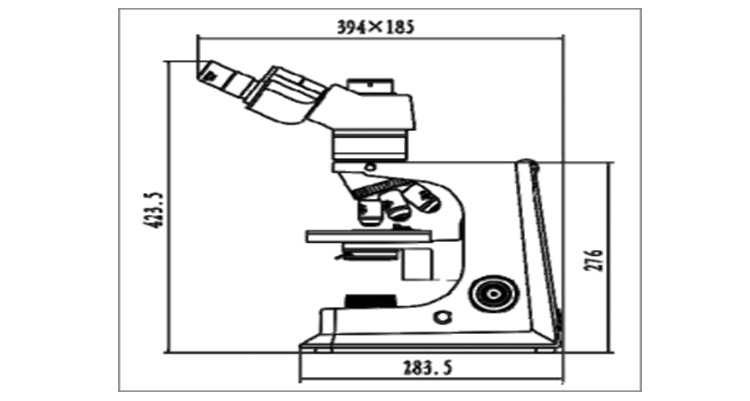

02. Smart-POL polarizing microscope size(mm)

03. Smart-POL polarizing microscope technical specifications

Eyepiece:

WF 10×-18mm

WF 10×-18mm (Reticule 0.1mm)

Non-stress Infinity Plan Objective: 4X, 10×, 20× (S), 40× (S)

Seidentopf Binocular  Head

Nosepiece: Quadplex, Center adjustable

Bertrand Lens: It can be moved out of the optical path

Analyzer Unit: 0-90°,It can be moved out of the optical path for single polarizing observe

Revolving Round Stage: diameter 142mm,rotatable 360 degree,division 1 degree

Slip: λ Slip, 1/4λSlip, Quartz Wedge

Non-stress Condenser: Abbe N.A.1.25

Polarizing Unit:  under the condenser

Halogen Transmitting Illumination: 12V/20W halogen lamp

Packing Size: 570mm×275mm×450mm Gross Weight: 8.6 kgs Net Weight: 7.5 kgs
